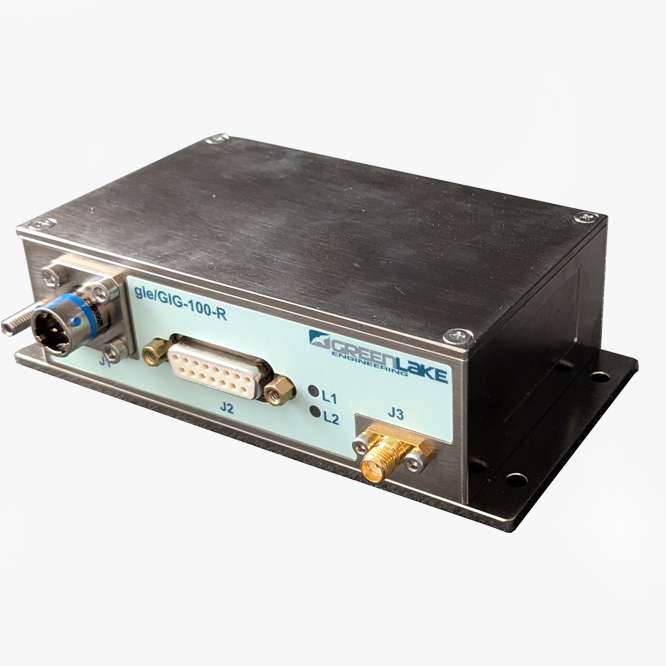

gle/GIG-100-R
Compact GNSS synchronized time code generator
Main Features • Selectable IRIG B or G output (DCLS), with optional modulated signal for flexible integration • Differential RS-422 outputs for reliable operation in industrial environments • Precise 1 PPS signal (1000 ms period) for accurate system synchronization • Time and position data via RS-232 (NMEA 0183) • Programmable UTC time offset (±12 hours) for maximum flexibility • Compact and rugged aluminum enclosure • Wide operating temperature range (-40°C to +85°C) • Low power consumption with 5 VDC supply • Integrated GNSS antenna bias • LED indicators for GNSS status and synchronization • Easy integration with standard interfaces (RS-232, RS-422, SMA) |
Overview
gle/GIG-100-R is a compact, GNSS synchronized, time code generator with selectable IRIG B or G output in a small, rugged enclosure.
Designed for easily deployment, it has multiple output interfaces: baseband IRIG DCLS timecode signals, as well as 1 PPS output, NMEA0183 messages over RS232 with time and position information.
On request, it can be supplied with modulated IRIG B or G outputs instead of DCLS ones.
Control and data communication are supported by an RS232 interface.
Small form factor, low power consumption, and a widely available +5V power supply allow a hassle-free system integration.
