gle/SmartZOC-200R


• 16, 32 or 64 channels ZOC Pressure Scanner input
• System Accuracy: 0.1% or better

• Zero and Gain Calibration capability

• USB 2.0 I/O i/f & RS 232 / 422 auxiliary data output

Wide Temperature Range

• Extended DC voltage supply range
• MS-Win SW GUI for setup, data display and storage



Fluid-dynamics instrumentation in harsh environments:

• Flight Testing of manned / unmanned aerial platforms

• Wind Tunnels / Ship Model Basins

• Turbine / Engine Testing
• Automotive Testing
• Railway, Armoured and Heavy-Duty Vehicles Testing

• Pressure Measurement in R&D

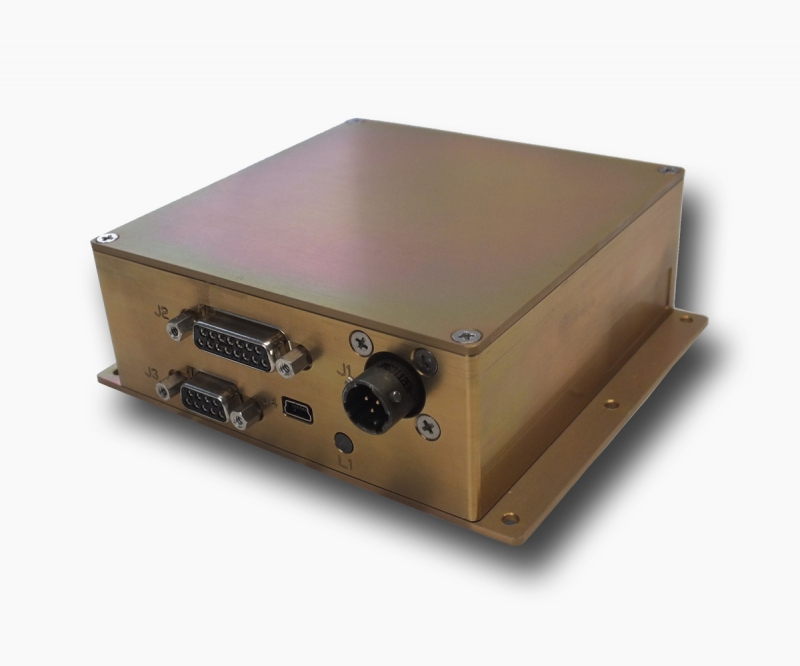

gle/SmartZOC-200R is a compact and rugged stand-alone unit specifically designed for control and data acquisition of Scanivalve’s ZOC Electronic Pressure Scanner Modules.

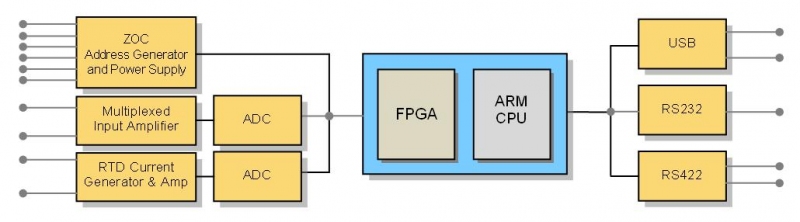

Based on a “system on chip” FPGA + ARM controller, it can be directly connected to one 16, 32 or 64 channels ZOC Pressure Scanner providing: regulated and isolated voltage supply, control of scanning sequence, conditioning of the analog pressure transducers and of the ZOC’s internal temperature sensor plus the 16 bit A/D conversion.



Due to continuous monitoring of the ZOC’s internal temperature, it is possible to perform a very accurate on-line correction of the pressure transducers temperature drift.



The acquired and converted data are then made available to the USB 2.0 or RS 232/422 interface output.

A dedicated software GUI allows the definition of measurement and acquisition set-up as: scanning speed, number of active channels, communication interface parameters, definition of engineering unit, data averaging and data visualization...

Thanks to its compact and robust construction, gle/SmartZOC-200R is particularly suitable in all applications where space is a premium, ruggedness and wide temperature range are necessary, especially where high performances in terms of reliability and high accuracy are mandatory requirements.

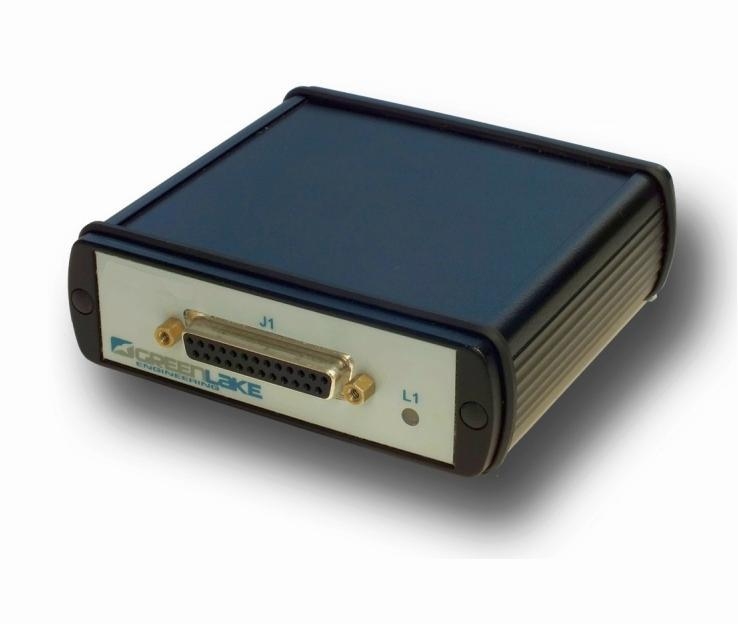

gle/SmartZOC-200I is the industrial version of gle/SmartZOC-200R and is available in a cheaper but still very robust enclosure.









Pressure Scanner Compatibility

ZOC17, ZOC22B, ZOC23B, ZOC33, ZOCEIM

Digital Interfaces

RS 232 / 422 output, baud rate up to 1 Mbaud;

USB 2.0 Full Speed for set-up, data output and quick-look

System Accuracy

≥0.1 % FS, accordingly to the used Pressure Scanner

A/D Resolution

16 Bit

Scan-Rate

up to 2000 S/Ch/s

Power Supply

18 ÷36 VDC @ 6 Watt max including ZOC module

ZOC Power Supply

±15 VDC,150mA max (internally regulated and isolated)

I/O Connectors

Power: 3 pins MS bayonet; Pressure Scanner: D-Sub 15 pins socket;

RS232/422: D-Sub 9 pins socket; USB: USB mini-B

Enclosure:

EMI/EMC shielded, milled aluminum box, Alodine coated; 109x109x43 mm (LxPxH) excluding mounting flange; 550 grams approx.

Shock & Vibration

Certifiable per MIL-STD 810F

Temperature

Operating  -40 ¸ +85°C

Humidity

0 ¸ 95% RH non-condensing

Due to continuous developments, specifications are subject to change without prior notice. This product is not intended for applications whose its failure to perform can be expected to cause damages to properties and/or persons and/or injury to human life.
